Layout & Subdivision Survey

Turning a single parcel into a marketable estate. We design and survey plot subdivisions that balance saleable yield against access, setback, and statutory approval requirements.

Estimate the fee Book a live consultation

Surveyor setting out a road curve with a total station

Setting out a curve: tangent length and deflection angle, checked at every peg.

What it looks like on the ground

Every plot pegged before a single foundation is dug.

Layout design and plot subdivision only pay off once they're set out accurately on site — each beacon placed, numbered, and tied to the approved plan.

Includes

Layout design, plot subdivision survey, beacon placement across the estate, special beacon number application.

Typical clients

Estate developers, real-estate investment companies, cooperative housing schemes.

Deliverable

Approved layout plan with individually beaconed and numbered plots.

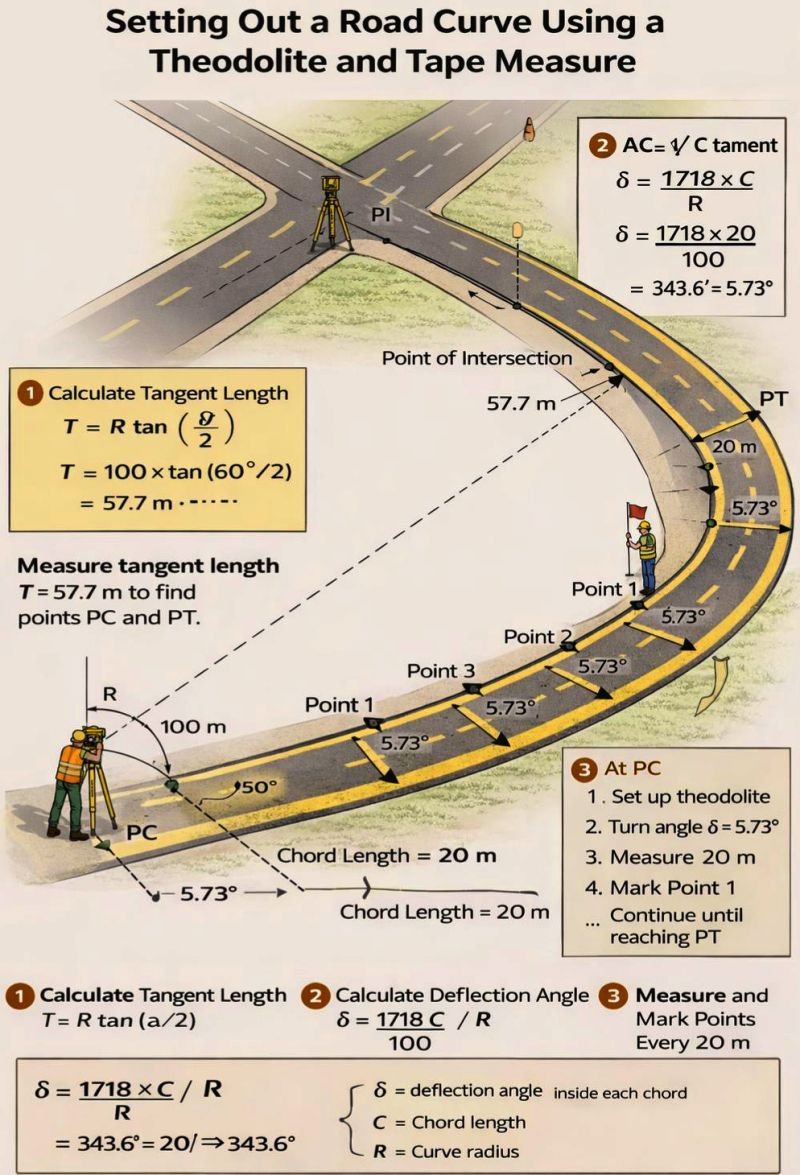

Diagram explaining how a road curve is set out using a theodolite and tape measure

The math behind it

Tangent length, deflection angle, chord — worked out before anyone breaks ground.

Curved boundaries and road reserves are set out from calculated tangent points and deflection angles, checked at fixed chord intervals against the approved layout — the same method behind every subdivision we peg.
